HELP V SIDE PLATFORM LIFT by Handytech
VAT Excluded
✅ First right sliding doors of minivans with at least 1050 mm opening.
✅ Vertical sliding and rotating movements for operation in tight spaces.
✅ Automatically opening fold-out platform.
✅ Manual lowering for pedestrian door access.
✅ Constructed from corrosion-resistant steel with an epoxy finish.
✅ Uses electric linear actuators for efficient, low energy consumption.
✅ Operated via remote control with an extensible cable.
✅ Weighs 95 kg, ensuring vehicle stability.
✅ Supports up to 200 kg, extendable to 250 kg.
✅ Includes audible and visual alerts, plus an emergency manual feature.
Description

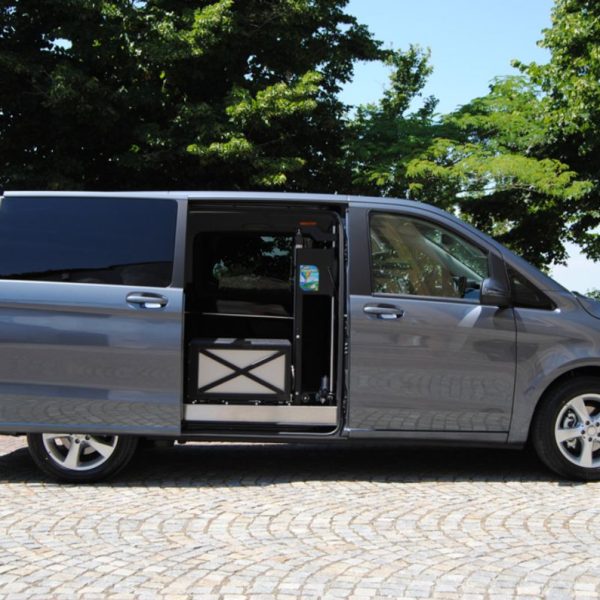

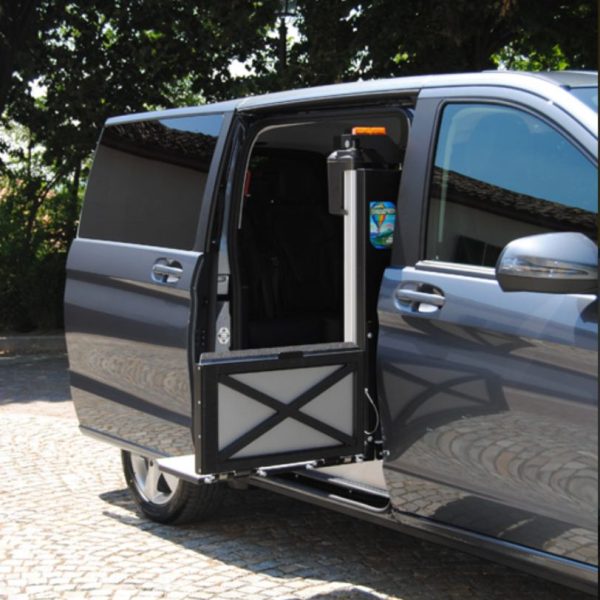

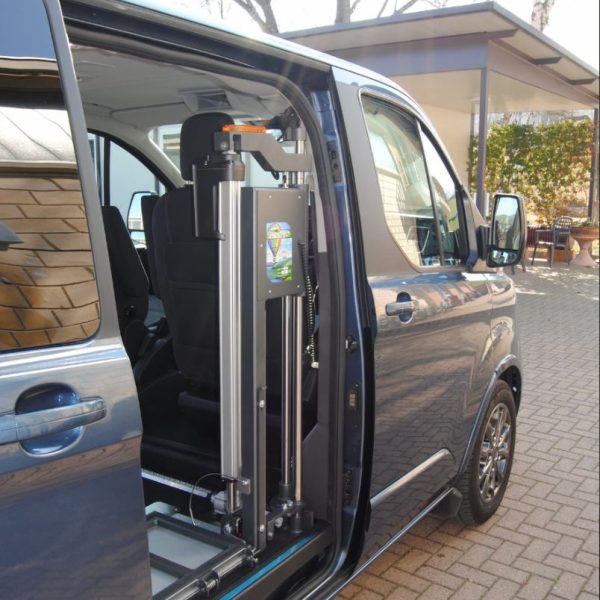

The HELP V platform lift is a unique product as it can be installed at the right sliding door of most minivans on the market as long as they have a door opening width of at least 1050 mm. Thanks to its particular handling system, complete with vertical sliding and a rotating movement, it can be operated in confined spaces, near sidewalks, and in narrow areas.

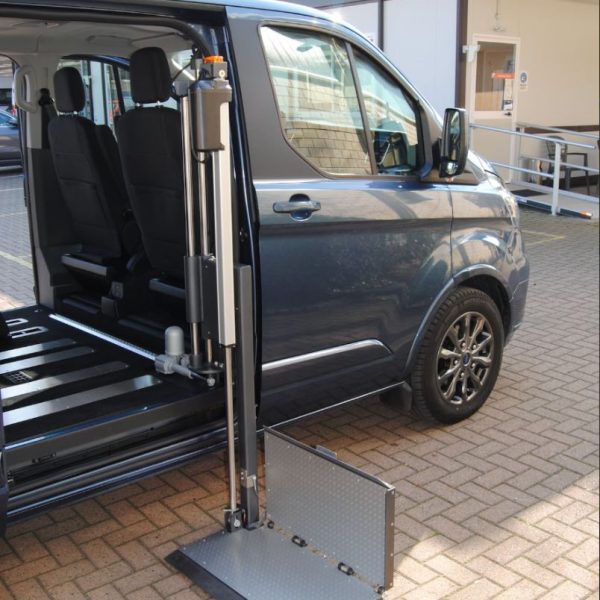

FOLD-OUT PLATFORM

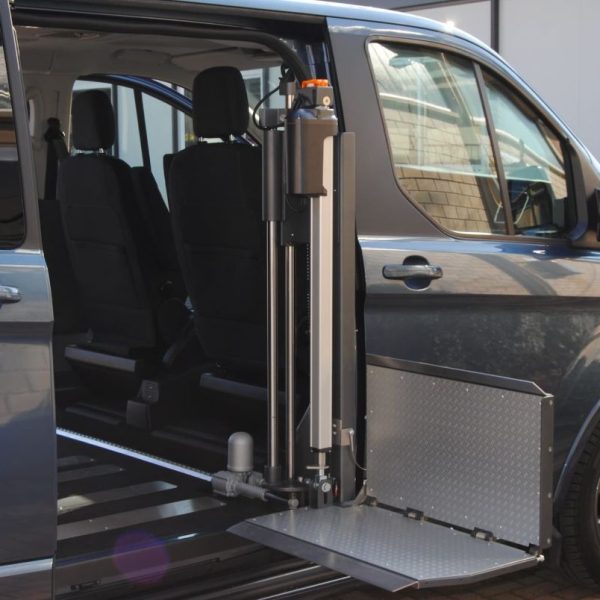

The device is equipped with a fold-out platform with automatic opening. With a simple manual operation, it can be lowered to restore pedestrian access to the right door. HELP V is made entirely of steel with epoxy coating, a guarantee of maximum resistance to corrosion, and the platform is covered in anodized aluminum.

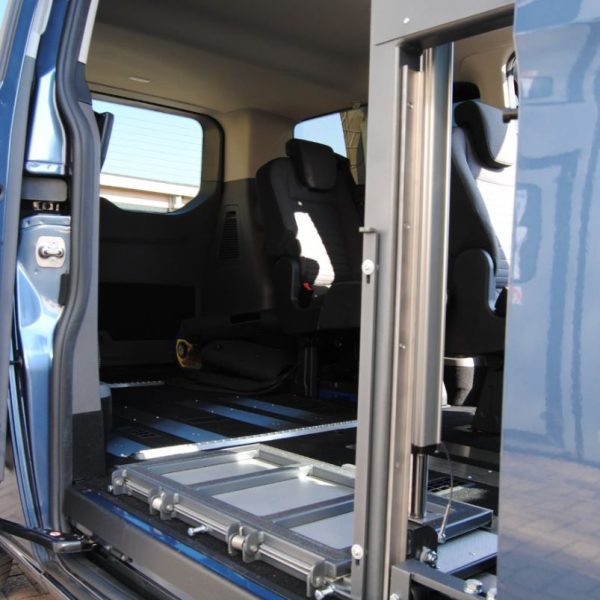

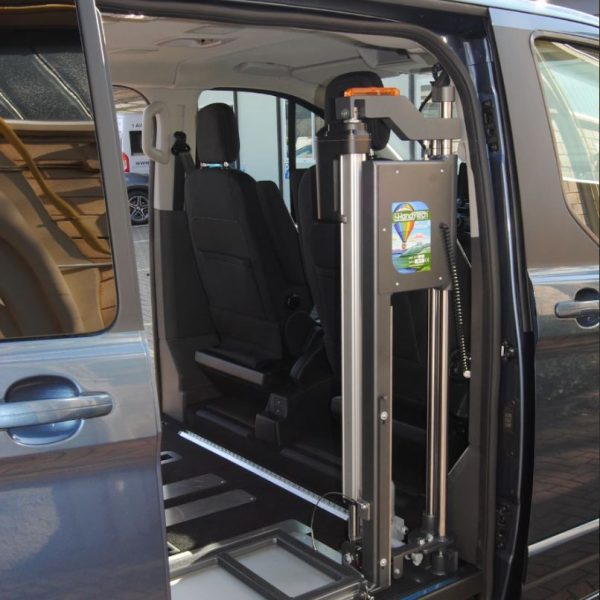

The device moves on sliding bearings and features electric linear actuators, synonymous with maximum efficiency and low electrical absorption. Each operation is carried out using an extensible cable control and regulated by limit switches. The HELP V platform has been built with adaptable brackets and electric connections for each specific vehicle.
LIGHT WEIGHT

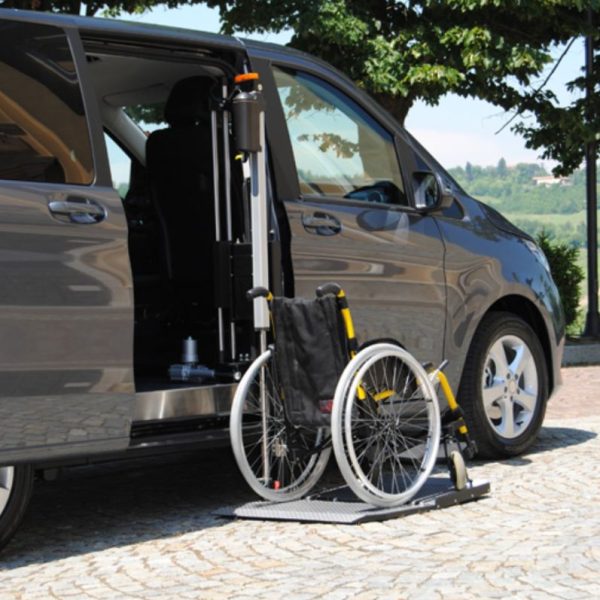

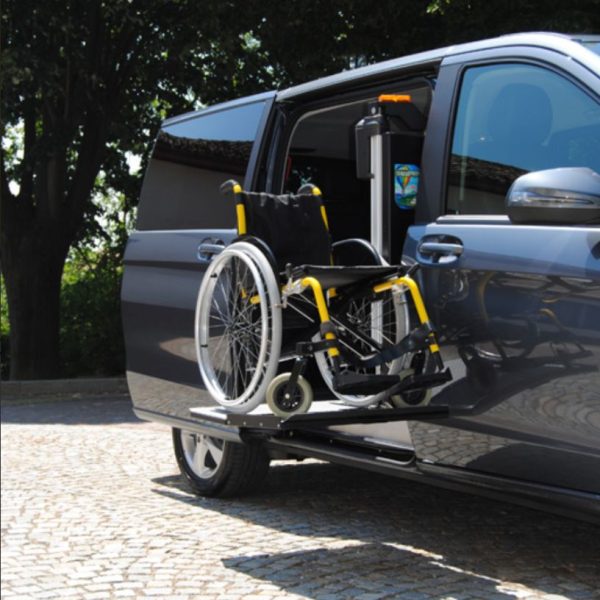

The HELP V footboard lift weighs approximately 95 kg, and considering the lateral positioning of the device, does not have any negative impact on weight distribution or vehicle stability while driving. Despite the low weight, made possible by a series of reinforcements, it still has a payload capacity of 200 kg. HELP V is particularly recommended for vehicles adapted for wheelchair drivers who are looking for complete independence.
Product Specifications
| Specifications | Details |
|---|---|
| Side Installation | Supplied with specific brackets |
| Operation | All operations are realized with electronic actuators |
| Loading Floor Material | Anodized aluminum |
| Painting | Dark grey powder painting |
| Control | Remote control with extensible cable |
| Alert System | Equipped with sonorous and visual buzzers |
| Emergency Feature | Manual emergency in case of emergency situations |
| Capacity | 200 kg (Optional 250 kg) |
| Surmountable Gap | 650 mm |
| Power Supply | Electric functioning at 12 Vcc |
