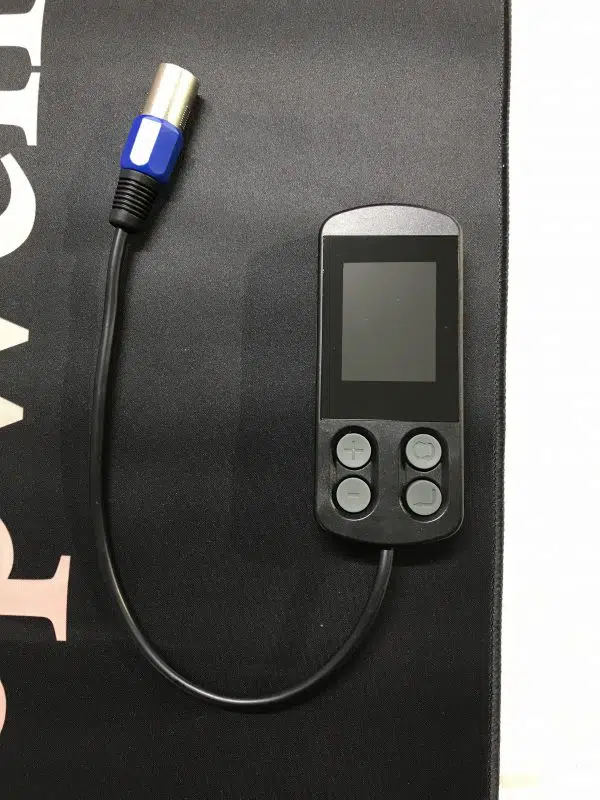

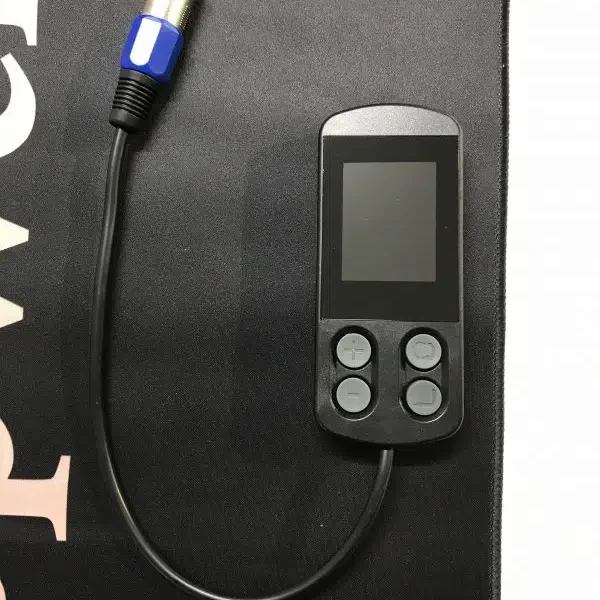

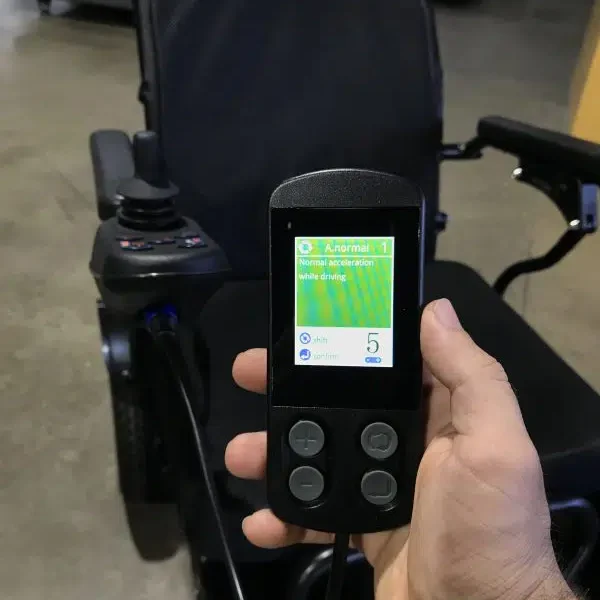

Programmer for Foldable Electric Wheelchairs

Description

Did you know we have a programmer for Electric Wheelchairs UAE?

We can REPROGRAM your GED09 electric wheelchair to Suit YOUR preferences!

Do you have a foldable electric wheelchair and dream of having your wheelchair be slightly slower, faster, smoother, or more sensitive?

Well, now your dreams can come true with our Programmer made for Foldable Electric Wheelchairs!

Regain your freedom and control 21 different settings to fit your preferences on electric wheelchairs in Australia, including:

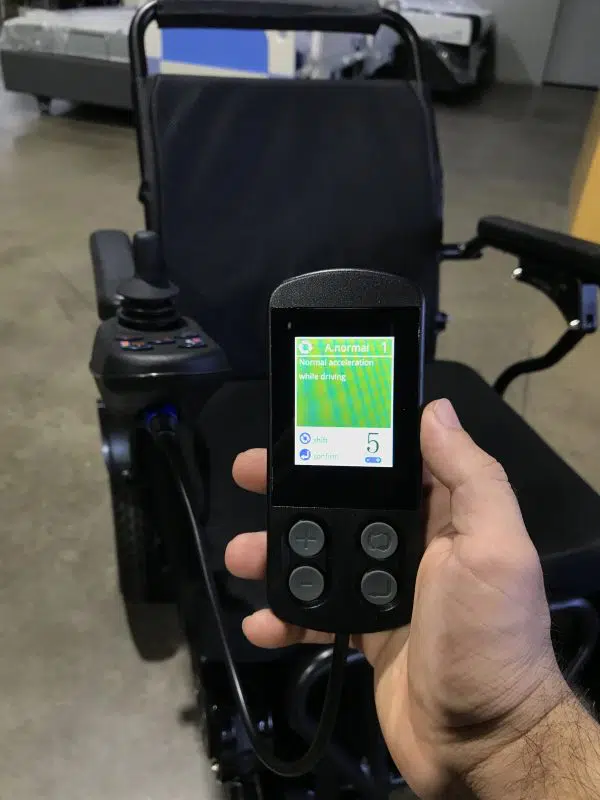

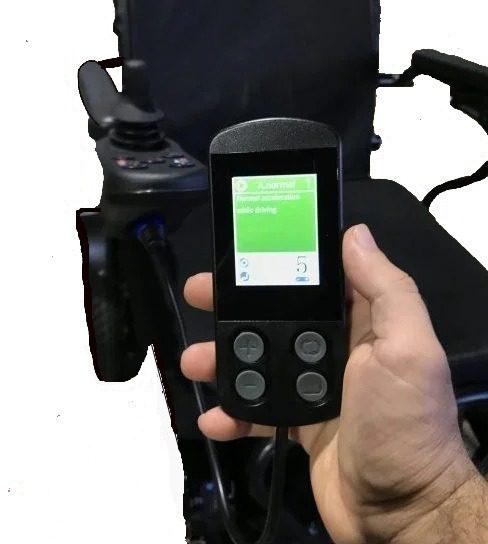

No 1: Driving acceleration. Adjust the acceleration of the electric wheelchairs driving speed. The scope of this parameter is from 1 to 20. The higher the value, the faster the acceleration.

No 2: Driving deceleration. Adjust the slowdown of the foldable electric wheelchair driving speed. The scope of this parameter is from 1 to 50. The higher the value, the faster the deceleration.

No 3: Turning acceleration. Adjust the turning acceleration of the electric wheelchair. The scope of this parameter is from 1 to 10. The higher the value, the faster the turning acceleration.

No 4: Turning deceleration. Adjust the turning deceleration of the electric wheelchair. The scope of this parameter is from 1 to 10. The higher the value, the faster the turning deceleration.

No 5: Low voltage protection. Adjust the value for low voltage protection. The scope of this parameter is from 1 to 5, and the interval indicates 2V. The deal is higher, the higher the low voltage.

No 6: Maximum back speed. Adjust the maximum speed of the back. The scope of this parameter is from 1 to 10. The higher the value, the faster the back speed.

No 7: Maximum forward speed. Adjust the maximum speed of the bold. The scope of this parameter is from 1 to 20. The higher the value, the faster the forward momentum.

No 8: Backing tone setting. 0: Do not set backing hint sound; 1: Setting backing hint sound.

No 9: Electromagnet brake device setting. 0:Do not set electromagnet brake device; 1: Setting electromagnet brake device. When this parameter is set as 1, the electric wheelchair will give an alarm if the electromagnet brake device isn’t checked.

No 10: The duration for auto shut off. When the wheelchair is not driving for some time, the controller will auto shut off. This parameter sets the 3-3 duration for auto shut off. The scope of this parameter is from 1 to 5, and the interval indicates 10 minutes. (For example, if this parameter is set as 3, the controller will auto shut down the power supply when the wheelchair is not driving for 30 minutes).

No 11: Phase identification of brushless motor (left motor). This parameter is used for the controller to identify the correct phase of the brushless motor. Note: When setting this parameter, the wheels should turn without moving forward. Press the up key, then push the control horn. If the direction of the wheel turning is the same as the control horn and the motor’s electricity is the minimum, the phase of the engine is correct. Then confirm this parameter. 6 steps of the motor can be set.

No 12: Setting the direction of the brushless motor( the left motor). 0 for the positive direction rotation, 1 for the opposite direction of rotation.

No 13: Phase identification of brushless motor ( right motor). The operation of the item is the same as the 11 items.

No 14: Setting of the direction of brushless motor (right motor). 0 for the positive direction rotation, 1 for the opposite direction of rotation.

No 15: The adjustment of the speed of the left motor.0: the original state, 1-20: gradually slow.

No 16: The adjustment of the speed of the suitable motor. 0: the original state, 1-20: gradually slow.

No 17: Electromagnet brake release time setting. The scope of this parameter is from 1 to 20, and the interval indicates 0.5 seconds. (e.g:0:0.5 second, 1: 1 second, 2:1.5 second).

No 18: Electromagnet brake CBL way setting. 1: No CBL; 0: CBL

No 19: Turning speed setting. The scope of this item is from 1 to 20.

No 20: Characteristics of the battery: 0 – lead-acid, 1 – Li battery.

No 21: Speed compensation: The scope of this parameter is from 0 to 20. 0: No compensation. The higher the value, the higher the compensation.

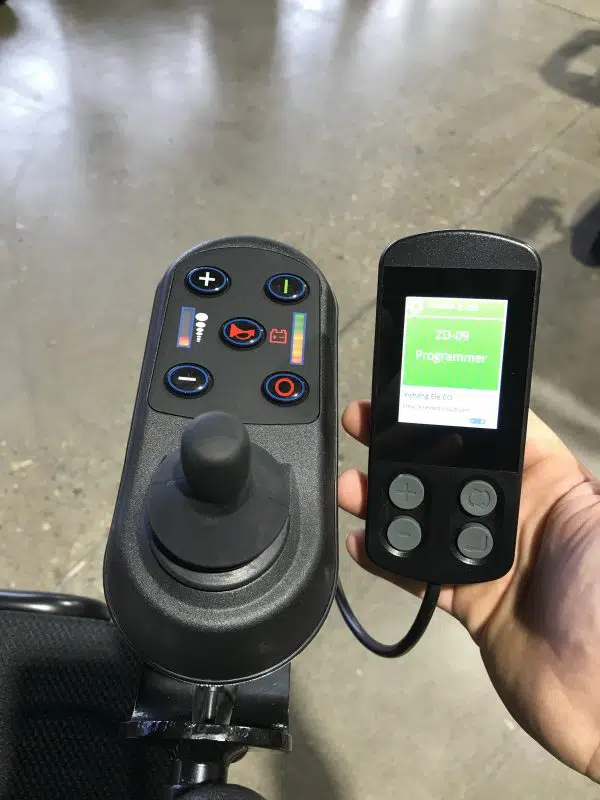

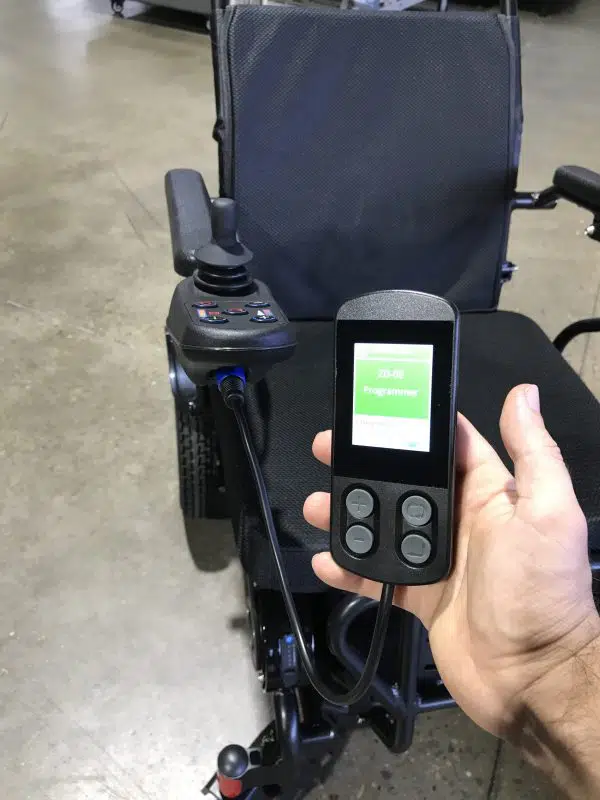

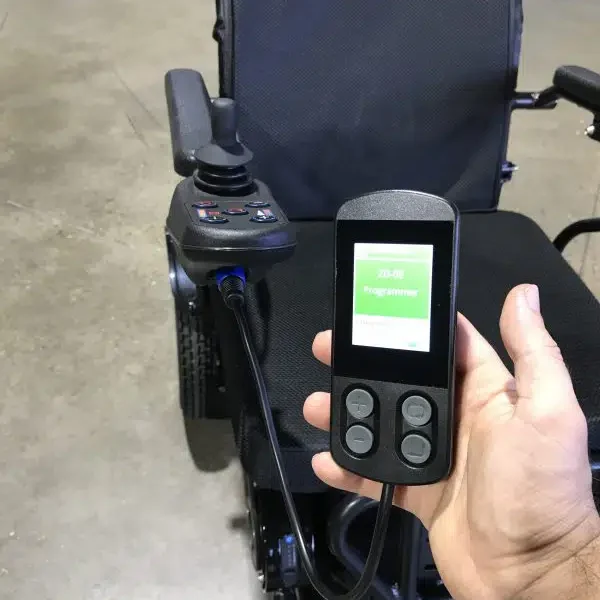

How is the Electric Wheelchair programmer used?

Our most popular wheelchair not only has plenty of Hidden Features, but the GED09 Foldable Electric Wheelchair programmer provides a different reason why this is the best wheelchair on the market!

Other reasons why the GED09 is the best foldable electric wheelchair

We are the exclusive foldable electric wheelchair distributor of the GED09.

The GED09 is the most customisable electric wheelchair on the market and the only foldable electric wheelchair on the market that can be commercially re-programmed to your preferences.

Made from Lightweight, strong aluminium GED09, Foldable Electric Wheelchairs are built to last a lifetime and weigh only 23kg! The durably built frame, along with the ergonomics of this power chair, means its maximum weight capacity is 180kg!

Since our GED09 has a maximum weight capacity of 180kg, it is also considered a bariatric wheelchair.

Standard Electric Wheelchairs usually have a maximum weight capacity of 110kg-130kg. It weighs 23 kilograms of a lightweight power wheelchair with a low weight capacity of 115kg for the heaviest-duty electric wheelchairs.

Our wheelchairs weigh 23kg, the lightest possible foldable electric wheelchairs on the market and the most heavy-duty on the market.

Our GED09 has the weight capacity and strength of a bariatric wheelchair whilst weighing the lightest electric wheelchairs on the market.
